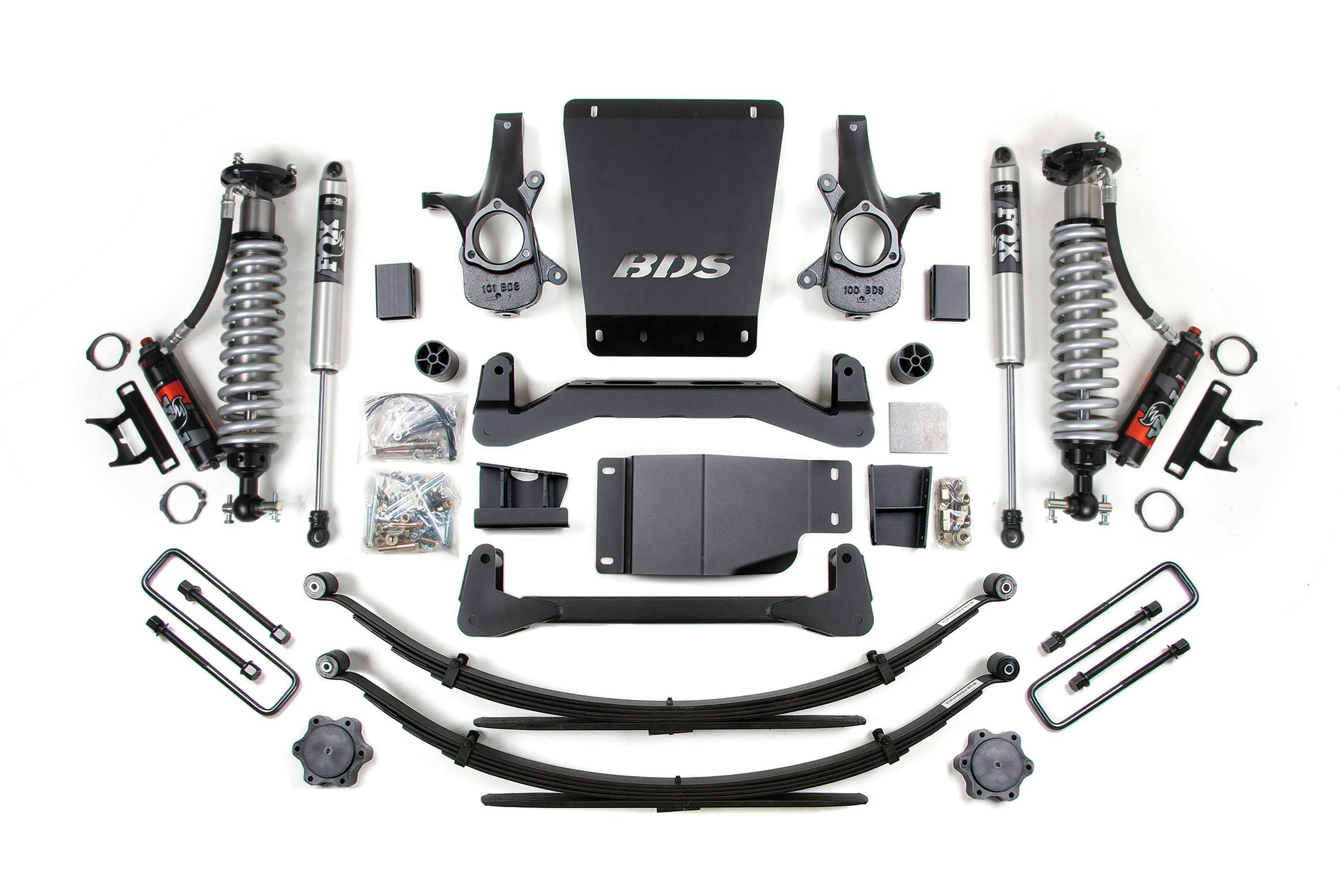

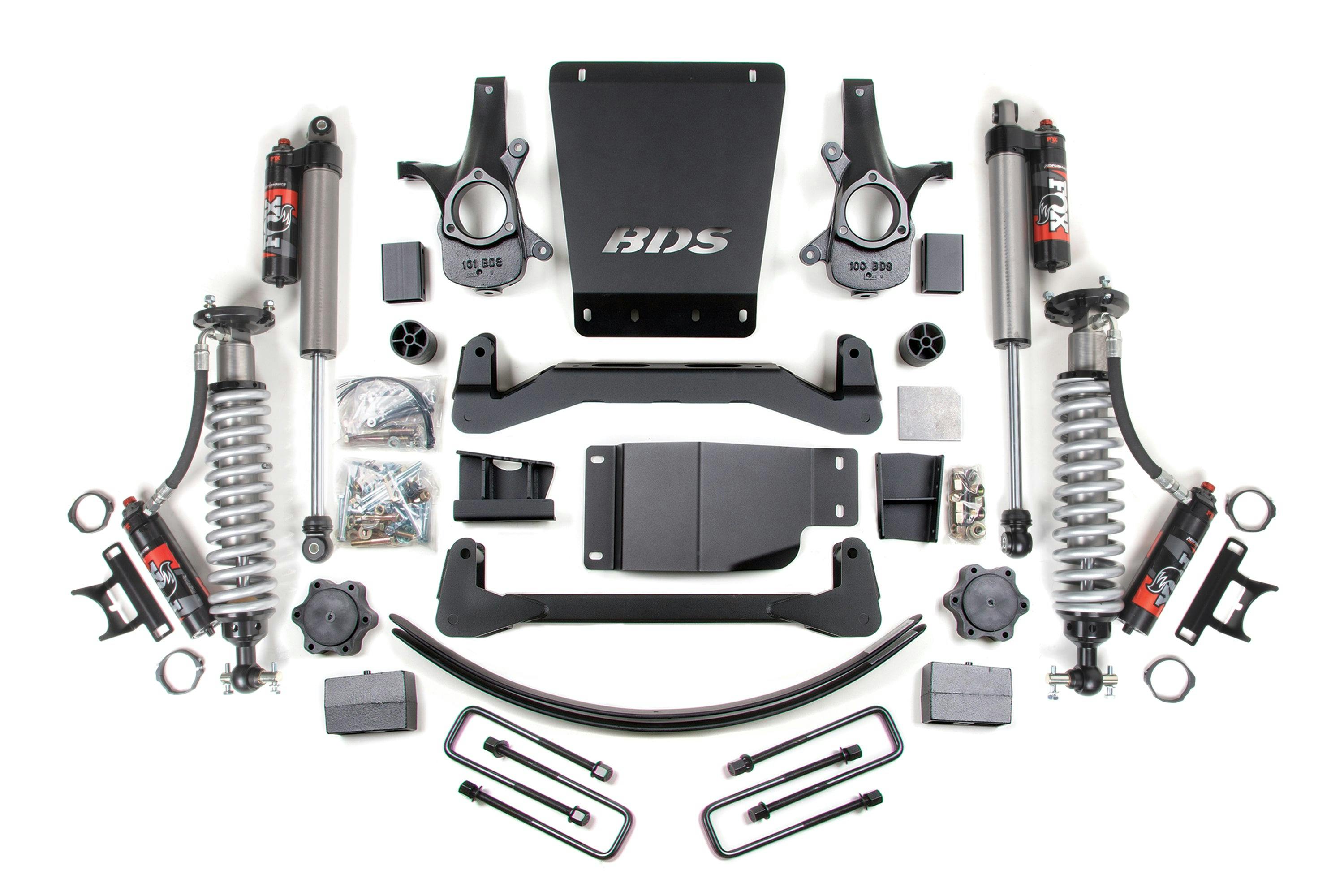

Take your 2007-2013 Chevy Silverado and GMC Sierra 1500 to new heights with a BDS 6-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.  This kit takes advantage of BDS's tried-and-true high-clearance design to improve ground clearance, strength, and off-road protection, while correcting suspension and steering geometry for excellent on-road handling. Up front, the kit utilizes full-length replacement strut shocks, high-arched 1/4-inch-thick steel crossmembers, along with multipiece differential relocation brackets and heavy-duty skid plates built for off-road protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These, combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware, and more, provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear, BDS offers both replacement lift blocks and full Glide-Ride leaf springs to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets, and precision-tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy-duty 1/4-inch-thick laser-cut, perfect-fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new, taller ride height using a pair of high-strength, CNC-machined ductile cast-iron steering knuckle designs that work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

• • Fox 2.5 Shocks designed specifically for increased travel and the abilty to soak up the roughest terrain.
  • The DSC (dual speed compression) adjuster adds remarkable versatilty and precise tuning with a simple twist of one or

  ---

  Application Summary:

  Year	Make/Model
  2007-2013	Chevrolet Silverado 1500
  2007-2013	GMC Sierra 1500
