Fits 1973-1987 GM K10 LS Swapped Trucks and Other 4WD LS Swap Projects

---

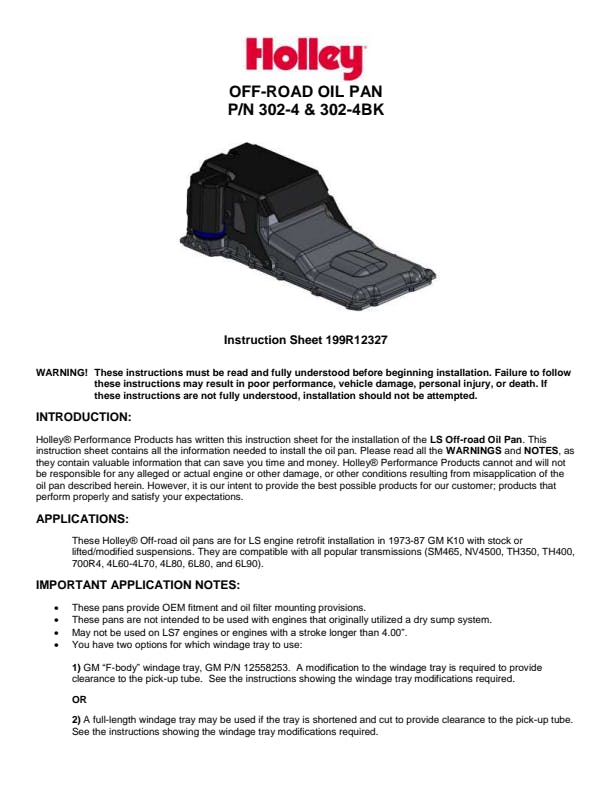

*See Installation Notes below for important information regarding necessary modifications to windage tray, capacity, etc. (see instructions for full details).

• Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE flange gasket and sealing, proper structural rigidity, and OE bell-housing attachments
• Traditional high-quality cast aluminum appearance with clean exterior styling
• Complete kit including sump baffle, pick-up tube, pick-up o-ring, oil filter stud, & oil passage cover
• Fits GM K10 and other LS Swapped 4-wheel drive applications
• Maximum crankshaft stroke - 4.00-inches
• Compatible with hinged-door baffle #302-33 and rock shield #302-35 which can be added at any time

---

Information:

Maximum crankshaft stroke = 4.00" Sump Oil Capacity - 5.6 Quarts Total Oil Capacity with stock oil filter - 6.1 Quarts Mr. Gasket 78080G or equivalent high-quality RTV sealer Oil Pan Gasket (Mr. Gasket P/N 6665G, GM® 12612350, or equivalent) Oil Filter (AC Delco®, PF48 or PF48E, Mobile M1-113, Wix 57060, K&N HP-1017, or equivalent) Requires use of Holley 302-15 Dipstick and Tube Kit or LS3 dipstick (GM P/N 12669528) and tube (GM P/N 12625031) Compatible with all popular transmissions (SM465, NV4500, TH350, TH400, 700R4, 4L60-4L70, 4L80, 6L80 and 6L90). Windage tray options: 1) GM "F-body" windage tray, GM P/N 12558253 or 2) A full-length windage tray may be used if the tray is shortened and cut for pick-up tube clearance. *Modification is required to provide clearance to the pick-up tube on both options. See instructions for further details on the windage tray modifications required. These pans are not intended to be used with engines that originally utilized a dry sump system.

---

Application Summary:

Year	Make/Model
1988-2002	Chevrolet C1500
1992-1999	Chevrolet C1500 Suburban
1988-2000	Chevrolet C2500
1992-1999	Chevrolet C2500 Suburban
1988-2000	Chevrolet C3500
1975-1986	Chevrolet K10
1973-1974	Chevrolet K10 Pickup
1973-1986	Chevrolet K10 Suburban
1988-1999	Chevrolet K1500
1975-1986	Chevrolet K20
1973-1974	Chevrolet K20 Pickup
1973-1986	Chevrolet K20 Suburban
1988-2000	Chevrolet K2500
1977-1986	Chevrolet K30
1973-1974	Chevrolet K30 Pickup
1988-2000	Chevrolet K3500
1975-1986	Chevrolet K5 Blazer
1995-2002	Chevrolet Tahoe
1987	Chevrolet V10
1987-1988	Chevrolet V10 Suburban
1987	Chevrolet V20
1987-1988	Chevrolet V20 Suburban
1987-1988	Chevrolet V30
1988-1999	GMC C1500
1992-1999	GMC C1500 Suburban
1988-2000	GMC C2500
1992-1999	GMC C2500 Suburban
1988-2000	GMC C3500
1973-1987	GMC Jimmy
1975-1978	GMC K15
1975-1978	GMC K15 Suburban
1973-1974	GMC K15/K1500 Pickup
1973-1974	GMC K15/K1500 Suburban
1988-1999	GMC K1500
1975-1978	GMC K25
1975-1978	GMC K25 Suburban
1973-1974	GMC K25/K2500 Pickup
1973-1974	GMC K25/K2500 Suburban
1988-2000	GMC K2500
1977-1978	GMC K35
1973-1974	GMC K35/K3500 Pickup
1988-2000	GMC K3500
1987	GMC V1500 Suburban
1987	GMC V2500 Suburban
1987	GMC V3500
