Ford 351W (9.5" Deck) Ford Hi-Ram Intake Manifold with 95mm LS Throttle Body Flange Top.
• Cast aluminum construction.
- Plenum Top Gasket Type – 3/32” Round O-ring Cord
- Manifold is designed for a 9.5" deck height.
- EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
- The 351W manifold is available to work with 95MM or 105MM GM LS throttle bodies
- Requires the Use of Holley EFI Dual Sync Distributor - 565-111
Information:

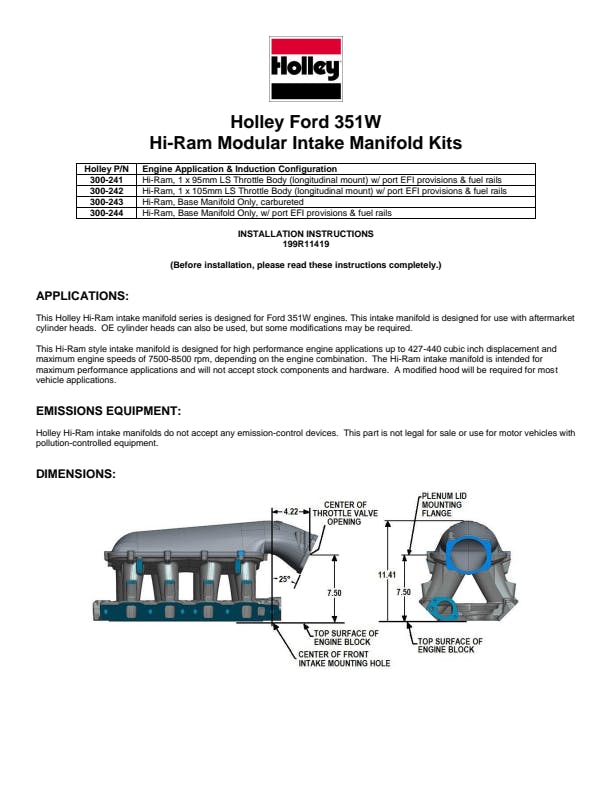

*** This Holley Hi-Ram intake manifold series is designed for Ford 351W engines. This intake manifold is designed for use with aftermarket cylinder heads. OE cylinder heads can also be used, but some modifications may be required. The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions. ***Warning- Many Ford vehicle models were originally equipped with a heater core flow restrictor located at either the original heater hose fitting in the factory intake or inline in the inlet heater hose which protects the heater core from damage. If you are replacing the hoses between the engine and heater core or changing the factory fitting check to see if your application requires a flow restrictor. Failure to use the proper flow restrictor will likely result in a damaged or leaking heater core.
Application Summary:
| Year |
Make/Model |
| 1975-1976 |
Bricklin SV-1 |
| 1971-1974 |
DeTomaso Pantera |
| 1987-1989 |
DeTomaso Pantera |
| 1978-1996 |
Ford Bronco |
| 1969-1974 |
Ford Country Sedan |
| 1969-1974 |
Ford Country Squire |
| 1969-1972 |
Ford Custom |
| 1969-1977 |
Ford Custom 500 |
| 1975-1983 |
Ford E-100 Econoline |
| 1975-1983 |
Ford E-100 Econoline Club Wagon |
| 1975-1996 |
Ford E-150 Econoline |
| 1975-1996 |
Ford E-150 Econoline Club Wagon |
| 1975-1996 |
Ford E-250 Econoline |
| 1975-1991 |
Ford E-250 Econoline Club Wagon |
| 1975-1996 |
Ford E-350 Econoline |
| 1977-1996 |
Ford E-350 Econoline Club Wagon |
| 1975-1976 |
Ford Elite |
| 1977-1979 |
Ford F-100 |
| 1977-1996 |
Ford F-150 |
| 1977-1996 |
Ford F-250 |
| 1997 |
Ford F-250 HD |
| 1977-1997 |
Ford F-350 |
| 1969-1970 |
Ford Fairlane |
| 1969-1970 |
Ford Falcon |
| 1969-1974 |
Ford Galaxie 500 |
| 1972-1976 |
Ford Gran Torino |
| 1975-1977 |
Ford Granada |
| 1969-1984 |
Ford LTD |
| 1987-1991 |
Ford LTD Crown Victoria |
| 1977-1979 |
Ford LTD II |
| 1969-1973 |
Ford Mustang |
| 1995 |
Ford Mustang |
| 1969-1974 |
Ford Ranch Wagon |
| 1969-1979 |
Ford Ranchero |
| 1977-1979 |
Ford Thunderbird |
| 1969-1976 |
Ford Torino |
| 1980 |
Lincoln Continental |
| 1980 |
Lincoln Mark VI |
| 1977 |
Lincoln Versailles |
| 1969-1974 |
Mercury Colony Park |
| 1969 |
Mercury Comet |
| 1969-1979 |
Mercury Cougar |
| 1969-1971 |
Mercury Cyclone |
| 1978-1979 |
Mercury Grand Marquis |
| 1981 |
Mercury Grand Marquis |
| 1983-1989 |
Mercury Grand Marquis |
| 1971-1973 |
Mercury Marquis |
| 1978-1979 |
Mercury Marquis |
| 1981 |
Mercury Marquis |
| 1975-1977 |
Mercury Monarch |
| 1969-1976 |
Mercury Montego |
| 1970-1974 |
Mercury Monterey |
| Attributes |
| Basic Operating RPM Range |
1500-7000 |
| Brand |
Holley EFI, Holley EFI |
| California Proposition 65 |
No |
| Carburetor Flange |
N/A |
| Carburetor Quantity |
N/A |
| Carburetor Studs Included |
N/A |
| Category |
Engine, Engine |
| CNC Ported |
No |
| Color |
Natural, Natural |
| Construction |
Cast, Cast |
| Country of Origin (Primary) |
CN |
| Cylinder Head Port Shape |
Rectangle |
| Cylinder Head Type |
Standard |
| Deck Height |
9.5 |
| EGR Port |
No, No |
| Emission |
Without EGR |
| Emission Code |
3, 4, Off Road |
| Engine |
Ford 351W, Ford 351W |
| Engine Make/Size |
Ford 351W |
| Finish |
Satin |
| Flange Style |
EFI, EFI |
| Flange Type |
EFI |
| Fuel Injectors Included |
No, No |
| Fuel System Type |
EFI, EFI |
| Gasket Or Seal Included |
Yes, Yes |
| Grade Type |
Performance, Performance |
| Harmonized Tariff Code (Schedule B) |
8409915085 |
| Hazardous Material Code |
N |
| Life Cycle Status Code |
Available to Order |
| Manifold Type |
Hi-Ram, Hi-Ram |
| Material |
Aluminum, Aluminum |
| NAFTA Preference Criterion Code |
B |
| Number of Carbs |
None; For Fuel Injection |
| part type |
Engine Intake Manifold, Engine Intake Manifold |
| Plenum Finish |
Natural, Natural |
| Port Size |
2.000 in. x 1.190 in., 2.00" x 1.190" |
| Position |
N/A |
| Product Type |
Manifold, Intake Manifold |
| RPM Power Band |
1500-7000, 1500-7000 RPM |
| RPM Range |
1500-7000 |
| SDR Required Flag |
N |
| Single Or Dual Plane Type |
Single Plane, Single Plane |
| Sub Category |
Cylinder Block Components, Cylinder Block Components |
| Throttle Body Bore Diameter |
95 MM, 95 MM |
| Throttle Body Gasket Included |
Yes |
| Throttle Bore |
95mm, 95mm |
| Usage |
Racing |
| Vacuum Ports |
Yes |
| Warning |
California Proposition 65, California Proposition 65 |
| Warranty |
Limited 90 Day, Manufacturer's Limited 90 Day Warranty |
| GTIN |
00090127029138 |
