Billet Fuel Pump, Billet Regulator, Billet Filters, Earl's Pro-Lite 350™ Black hose, Swivel-Seal™ hose ends
Holley EFI fuel kits are the perfect addition to your Terminator or Holley EFI kit. They are engineered using Holley fuel pumps, regulators and filters coupled with quality Earl's plumbing to provide a fuel system tailored to the needs of your Terminator EFI System
Holley EFI fuel kits are the perfect addition to your Terminator or Holley EFI kit. They are engineered using Holley fuel pumps, regulators and filters coupled with quality Earl's plumbing to provide a fuel system tailored to the needs of your Terminator EFI System
- Holley EFI fuel kits provide everything needed for a complete supply fuel system for the Terminator EFI. The following items are included:
- Billet Fuel PumpP/N 12-600 65 GPH
- Billet RegulatorP/N 12-846 Adjustable from 40-70psi with manifold reference
- Billet FiltersP/N's 162-550 (100 GPH 10 Micron) and 162-551 (100 GPH 100 Micron)
- Earl's Pro-Lite 350™ Black HoseP/N 350006ERL, 20 ft. of -6 hose

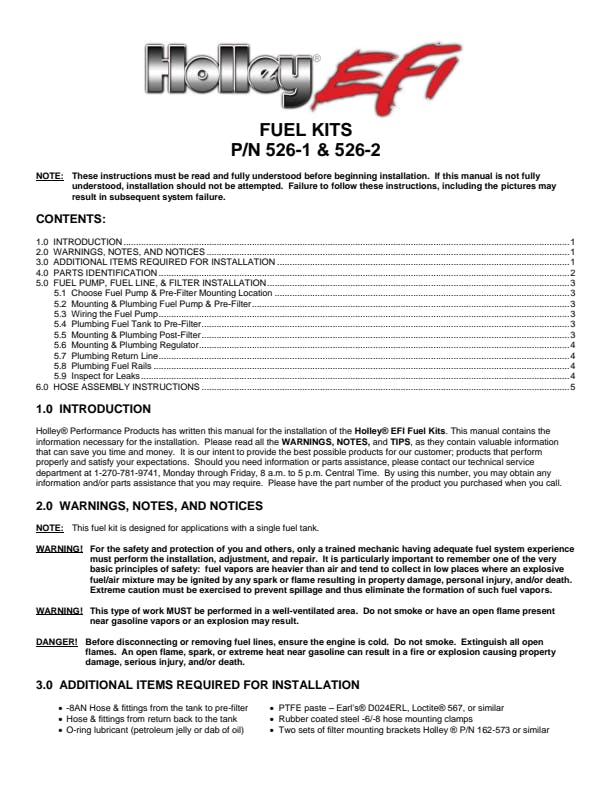

- Swivel-Seal™ Hose EndsView the instructions below for a list of all fittings included
Information:
Kits do not include hose from the fuel tank to the pre-filter or the return line from the fuel pressure regulator to the tank.This kit is recommended for pump or race gas use only. The included fuel pump is not compatible with E-85.| Attributes | |
| Brand | Holley EFI, Holley EFI |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Category | Air and Fuel Delivery, Fuel Pumps and Accessories |
| Category Filter | Fuel Pumps and Accessories |
| CFM | N/A, N/A |
| Clearance Category | Fuel Pumps and Accessories |
| Color | Silver |
| Country of Origin (Primary) | US |
| Emission Code | 4, 4, Off Road |
| Finish | Anodized |
| Forced Induction HP@43PSI | 450, 450 |
| Forced Induction HP@60PSI | 380, 380 |
| Forced Induction HP@8PSI | 560, 560 |
| Free Flow GPH | 65, 65 |
| Fuel Delivery Type | Fuel Injection, Fuel Injection |
| Fuel Sending Unit Included | No, No |
| Fuel Type | Gasoline, Gasoline |
| Gasket Or Seal Included | No, No |
| GPH@43PSI | 48, 48 |
| GPH@60PSI | 41, 41 |
| GPH@8PSI | 65, 65 |
| Grade Type | Performance, Performance |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Hazardous Material Code | N |
| Hose End Size | 6AN, 6 AN |
| Hose Length | 20 ft., 20' |
| Hose Series | Earl's Pro-Lite 350G?? Black, Earl's Pro-Lite 350™ Black |
| Internal Or External | External, External |
| Life Cycle Status Code | Available to Order |
| LPH@43PSI | 155, 181 |
| LPH@60PSI | 181, 155 |
| LPH@8PSI | 230, 230 |
| Mounting Bracket Included | Yes, Yes |
| Mounting Hardware Included | Yes, Yes |
| NAFTA Preference Criterion Code | B |
| Naturally Aspirated HP@43PSI | 600, 600 |
| Naturally Aspirated HP@60PSI | 500, 500 |
| Naturally Aspirated HP@8PSI | 730, 730 |
| Negative Ground | Yes, Yes |
| Outlet Type | ORB, ORB |
| part type | Electric Fuel Pump, Electric Fuel Pump |
| Pressure | 40-70 PSI |
| Pressure Range | 40-70 PSI, 40-70 PSI |
| Product Type | EFI Fuel System Kit, EFI Fuel System Kit |
| Regulator Included | Yes, Yes |
| Sale Category | Air and Fuel Delivery |
| SDR Required Flag | N |
| Seal And Lock Ring Included | No, No |
| Strainer Included | No, No |
| Sub Category | Fuel Pumps and Related Components, Fuel Pumps and Related Components |
| Terminal Quantity | 2 |
| Universal Or Specific Fit | Universal, Universal |
| Warning | California Proposition 65, California Proposition 65 |
| Warranty | Limited 90 Day, Manufacturer's Limited 90 Day Warranty |
| Wiring Harness Included | No, No |
| GTIN | 00090127685051 |
