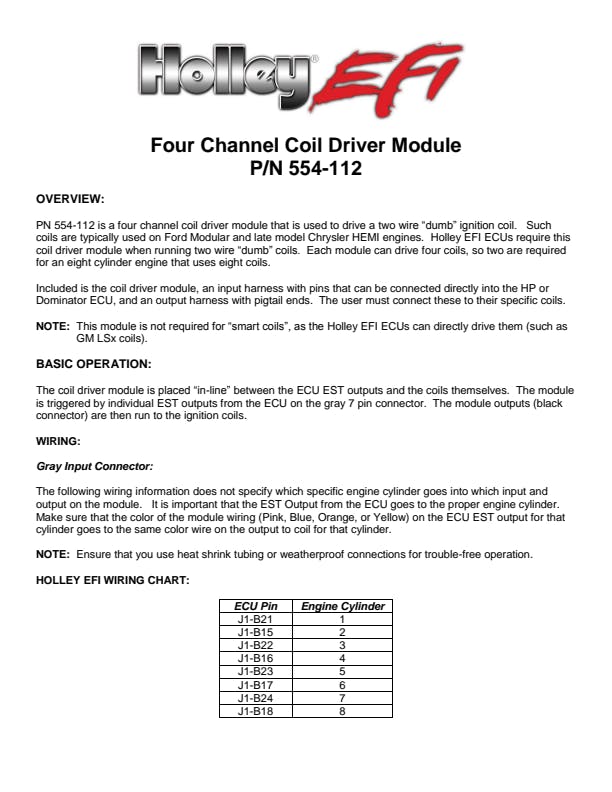

Used to drive a two wire “dumb” ignition coil. Great for retrofitting an engine to C-N-P.
Included is the coil driver module, an input harness with pins that can be connected directly into the HP or Dominator ECU, and an output harness with pigtail ends. The user must connect these to their specific coils.
Included is the coil driver module, an input harness with pins that can be connected directly into the HP or Dominator ECU, and an output harness with pigtail ends. The user must connect these to their specific coils.
- Includes mating pigtails
- Potted design allows installation in engine compartment
- Drives two wire “Dumb Coils”
- Four channel
| Attributes | |
| Brand | Holley EFI, Holley EFI |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Category | Ignition |
| Connector Gender | Female |
| Connector Quantity | 2 |
| Country of Origin (Primary) | CA |
| Emission Code | 5, 5 |
| Grade Type | Performance |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Hazardous Material Code | N |
| Ignition Type | Distributorless |
| Life Cycle Status Code | Available to Order |
| Mount Type | Bolt-On |
| Mounting Hardware Included | No |
| NAFTA Preference Criterion Code | D |
| part type | Ignition Control Module |
| Product Type | High Current Driver - Module, High Current Driver - Module |
| Sale Category | Air and Fuel Delivery |
| SDR Required Flag | N |
| Sub Category | Control Modules |
| Warning | California Proposition 65, California Proposition 65 |
| GTIN | 00090127685105 |
